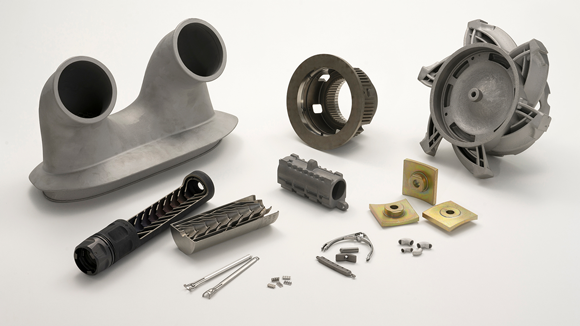

The winners of the 2024 Powder Metallurgy Design Excellence Awards competition, sponsored by the Metal Powder Industries Federation (MPIF), have just been announced at PowderMet2024. Ten Grand Prizes and seventeen Awards of Distinction were presented in this year’s competition. Entries were divided into three categories: Conventional Press and Sinter PM, Metal Injection Molding and Metal Additive Manufacturing.

The winners once again demonstrate outstanding examples of the PM industry’s diversity and ability to meet critical requirements. From electric vehicles to medical implants, parts manufacturers have demonstrated PM’s versatility and unique ability to challenge competing technologies.

The following are prizes presented in the Metal Injection Molding category:

GRAND PRIZE AWARDS

Military/Firearms

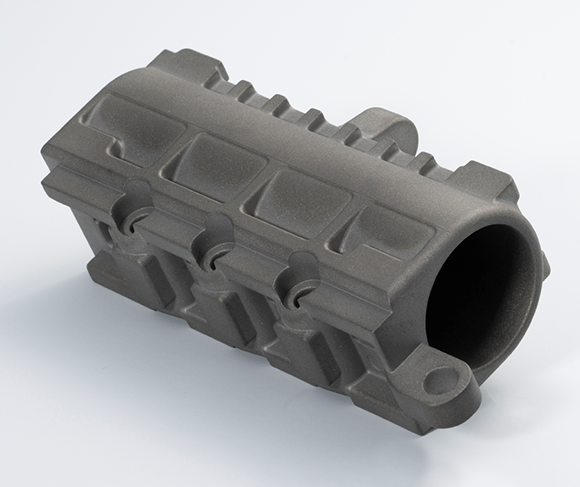

In the Military/Firearms Category for MIM components, a Grand Prize has been awarded to TriTech Titanium Parts LLC, Detroit, Michigan, US, and its customer Primary Weapons Systems, Boise, Idaho, for a titanium universal trunnion in an innovative rifle platform that provides quick barrel changing and allows one weapon to fire multiple calibers with minimal changeover of parts and time. The trunnion requires annealing for post machining ease but does not need HIP processing to meet customer performance requirements. CMM inspection was followed by a 20,000 round firing test. The part was originally intended to be made via Laser Beam Powder Bed Fusion Additive Manufacturing, but inconsistent strength, rougher surfaces, and higher cost made that option not viable.

Hand Tools/Recreation

In the Hand Tools/Recreation Category for MIM Components, a Grand Prize has been awarded to APG-MIM, a Division of Nichols Portland Inc based in Ridgway, Pennsylvania, and its customer Paige Musical for a six-string guitar capo assembly comprising a saddle, adjustment guide, bar, and yoke. A capo is used to temporarily shorten the strings on a guitar, raising the pitch of the unfretted or ‘open’ strings and changing the key of the open-position chords.

The incredibly challenging part design led to issues with tool design, molding, de-binding, and sintering operations. Customised ceramic setters and an optimised two-stage injection molding process was required for successful manufacture of the part. The adjustment guide has an as-molded thread, and zero secondary operations are needed for manufacture and function.

Medical/Dental

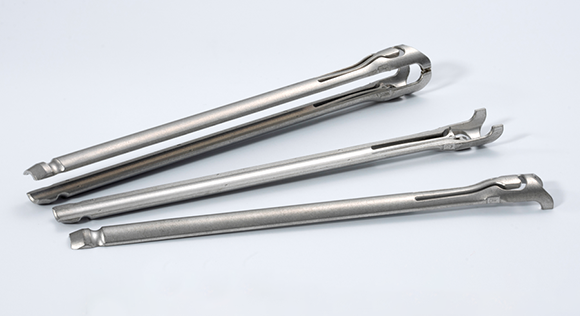

In the Medical/Dental Category for MIM components, a Grand Prize has been awarded to Advanced Powder Products, Inc, Pittsburgh, Pennsylvania, for a screw chuck used in orthopaedic surgery. The part is used in a larger assembly that allows a surgeon to drill screws into the spinal regions of patients. Once the screw is inserted, the assembly needs to be broken in two and easily removed.

Initially, the part was presented as a one-piece design. However, after extensive design modifications, the MIM solution was a two-piece assembly that needed to be joined by laser welding.

Electronic/Electrical

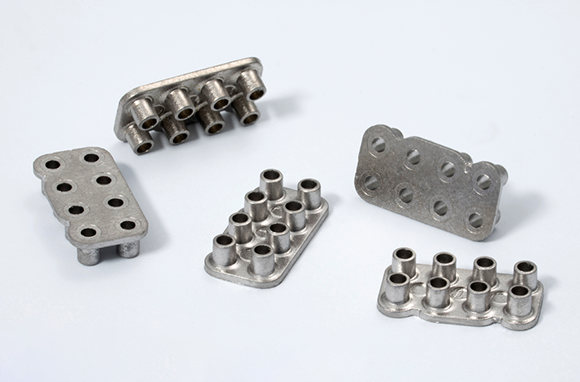

A Grand Prize has been awarded in the Electronic/Electrical Components Category for MIM components to MPP, Noblesville, Indiana, and customer Tactile Engineering, Lafayette, Indiana, for a core plate used in its Cadence Tablet that has a refreshable braille display for the vision impaired.

The core plate is an extremely challenging part to produce that requires strict adherence to tight tolerances, flatness, absence of flashing, and magnetism. The device uses magnetic latching that requires a specific amount of holding force for effective operation. Traditional machining waste would be more than 40%, and machined parts would cost at least 10X the amount of the MIM parts.

AWARDS OF DISTINCTION

Automotive – Engine

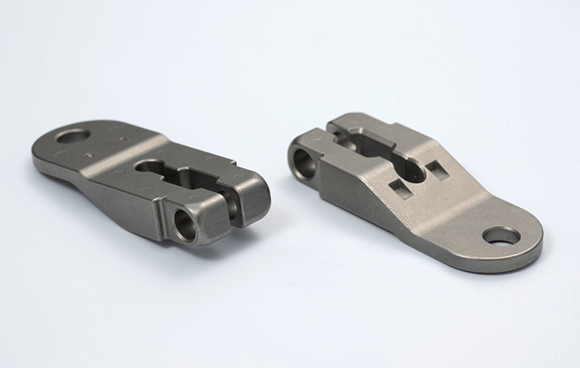

In the Automotive—Engine Category for MIM components, an Award of Distinction has been given to INDO-MIM Pvt Ltd, Bengaluru, India, for a lever used as a gas-flow controller in the turbocharger of internal combustion engines. The lever has a U-shaped geometry with an open slot at the rear end, a through-hole at the front, with another through-hole passing through the slot.

MIM processing reduced lead times and was able to produce the high volume of parts needed weekly by the customer while significantly reducing waste material compared with a forging process.

Automotive – Electric Vehicle

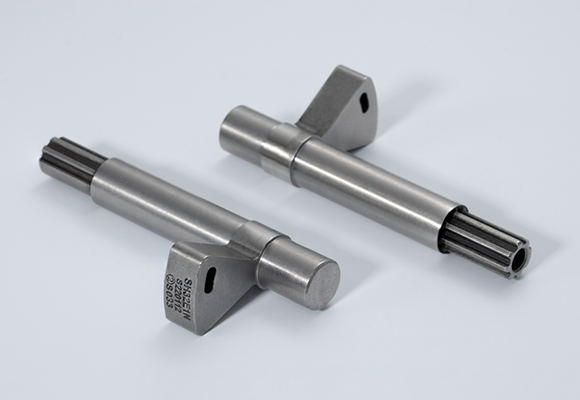

In the Automotive—Electric Vehicle Category for MIM components, an Award of Distinction has been given to Hangzhou Sino-MIM Technology Co Ltd, China, for a ratchet shaft used in the parking brake system for new electric vehicles. The motor moves the splined part to rotate the ratchet shaft so that the cam contacts the disc brake for locking and parking. The spline of the ratchet shaft has a tight tolerance so fixturing was used during sintering to maintain the part geometry and reduce final machining. The MIM part results in a 20% cost saving compared with a fully machined component.

Military/Firearms

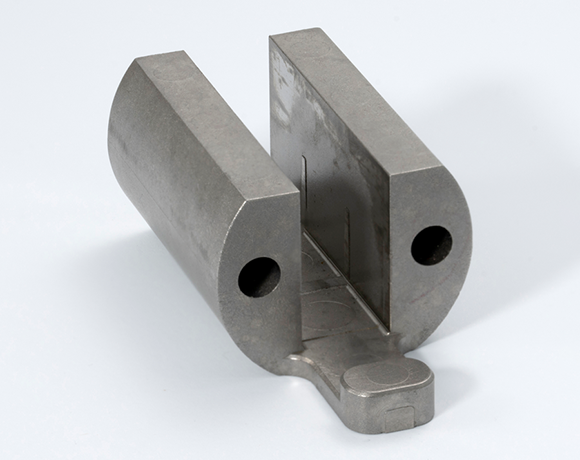

In the Military/Firearms Category for MIM components, an Award of Distinction has been given to PTI Tech, Clifton, New Jersey, for an inertia weight in a bolt assembly for a blowback firearm. Tungsten heavy alloy was selected as the material choice for the part that requires a high specific gravity material to obtain the necessary mass in the allotted volume. Tungsten heavy alloys cost 5–10X that of alloy steels and near-net shape processing is needed to minimise raw material costs. Machining the part from bar stock would result in over 70% swarf.

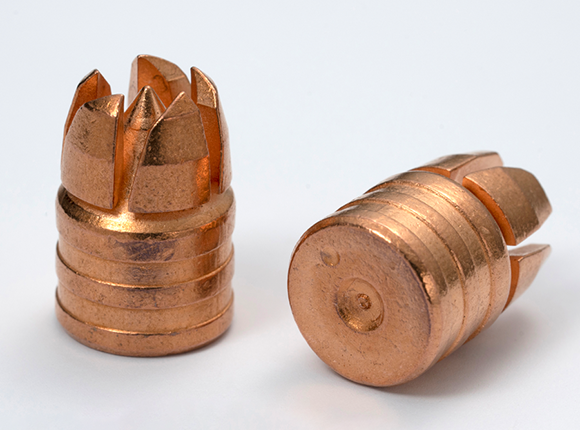

An Award of Distinction, in the Military/Firearms Category for MIM components, has also been given to ARC Group Worldwide, Longmont, Colorado, and customer Halo Ammunition for a 45-caliber bullet. The bullet is a solid copper projectile that uses a copper feedstock along with a proprietary binder formulation to ensure even and complete sintering with minimal distortion. The petals were redesigned for better suitability in injection molding. There is no machining scrap and scrap from tool set up can be recycled.

Industrial Motors/Controls & Hydraulics

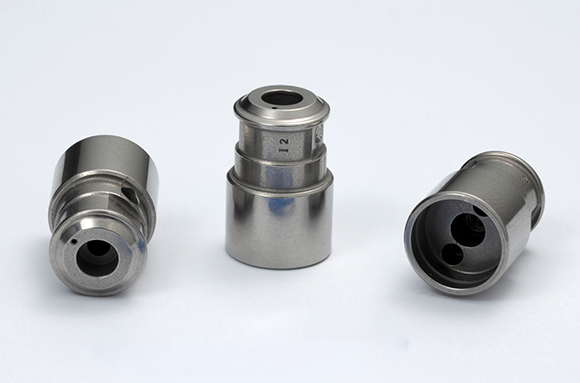

In the Industrial Motors/Controls & Hydraulics Category for MIM components, an Award of Distinction has been given to INDO-MIM for a cone that acts as a fluid controller in a fuel pump. Molding this complex part with thirteen multiple steps and cross-holes without merging lines and weld-line defects is a challenge. The intricate profiles of the part have tight tolerances.

Electronic/Electrical Components

An Award of Distinction, in the Electronic/Electrical Components Category for MIM components, has been given to Hangzhou Sino-MIM Technology Group (SMTG) for an ultra-thin base plate used as a heat-dissipation module in an optical communication 5G base-station. Numerous heating components are mounted on the product’s surface, which serves not only as the mounting base but also conducts and dissipates heat. MIM processing cut the product cycle time and reduced the cost of the product by 45%.

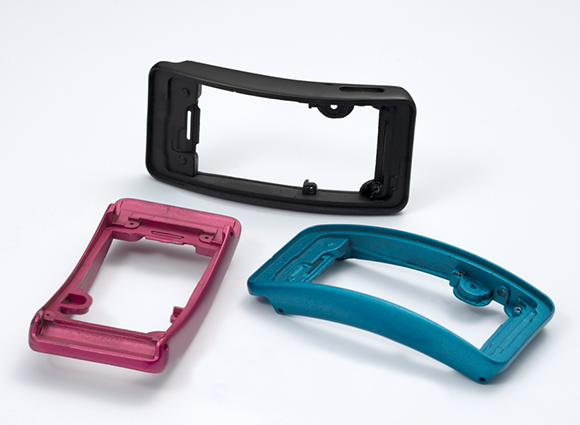

In the Electronic/Electrical Components Category for MIM components, an Award of Distinction was also given to SMTG for an aluminium alloy smart-watch case. The thin, complex sections of the part require use of a high-fluidity feedstock and a high-speed molding machine. The curved surface of the watch cases necessitates manual polishing to a mirror finish and the parts are anodised to various colours. The light weight of the aluminium alloy parts compared with ones made using stainless steel is a significant benefit.
